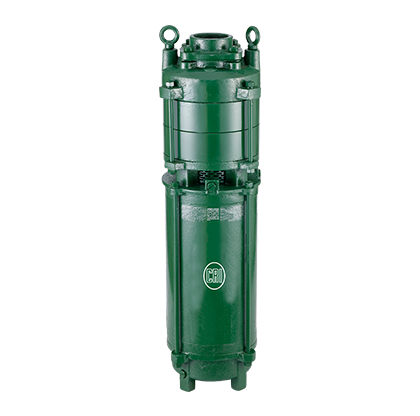

CRI VERTICAL OPENWELL SUBMERSIBLE PUMPS CV SERIES
CRI VERTICAL OPENWELL SUBMERSIBLE PUMPS CV SERIES
Ideal for Fluctuating Water Levels in Tanks & Wells
C.R.I.'s Openwell Submersible Pumpsets are engineered to perform efficiently in openwells or tanks where water levels vary significantly. Operating fully submerged, the pump eliminates the need for suction and priming, offering silent, reliable performance in domestic, agricultural, and industrial settings.
With a water-cooled, rewindable motor and a rugged cast iron body, this pumpset is built for long-lasting operation—even in demanding conditions. It requires no pump house, simplifies maintenance, and is easy to dismantle and repair.
View BrochureKey Features
- Works underwater – no suction or priming issues
- Noiseless operation for residential-friendly performance
- High hydraulic efficiency reduces energy costs
- No external pump house required
- Easy serviceability and maintenance
- Motor offers superior cooling for longer life span
Applications
Agriculture
Domestic Water Supply
Irrigation Systems
Gardens and Landscaping
Industrial Water Distribution
Rural Water Supply Projects
Specifications
| Parameter | Details |
|---|---|
| Power Range | 2.2 kW – 37 kW (3 HP – 50 HP) |
| Voltage Range | 3 Phase, 380 – 415V AC, 50Hz |
| Max Total Head | Up to 341 metres |
| Max Flow Rate | Up to 54 lps (194 m³/hr) |
Material of Construction
| Component | Material |
|---|---|
| Pump Casing | Cast Iron |
| Impeller | Cast Iron / SS 410 / Bronze |
| Bracket | Cast Iron |
| Motor Shaft | Stainless Steel – SS 410 |
