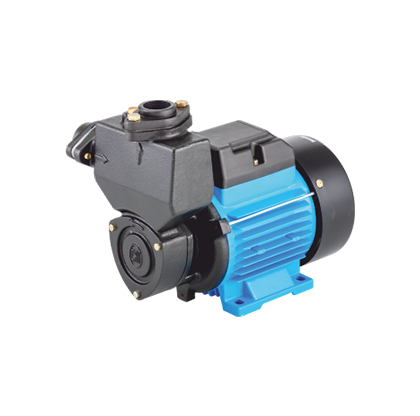

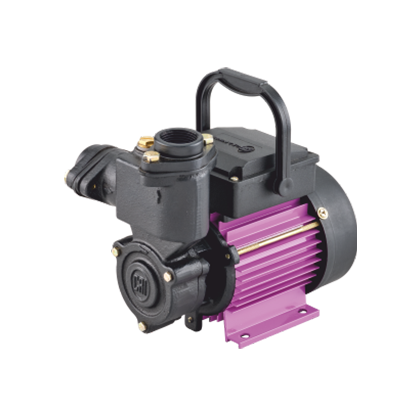

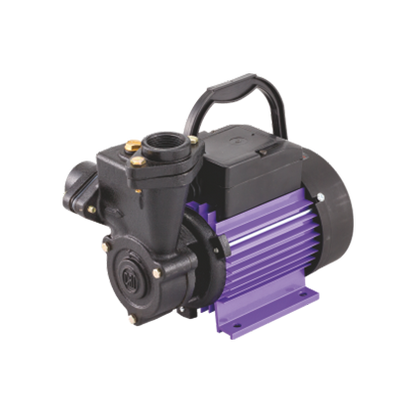

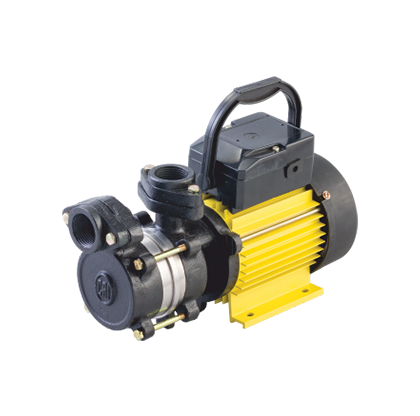

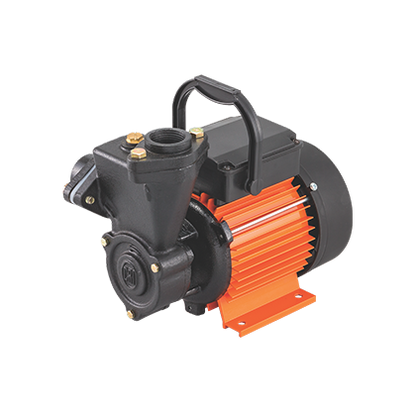

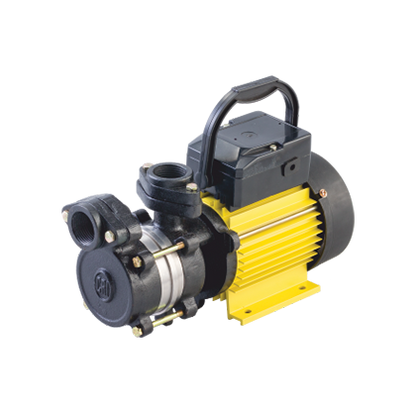

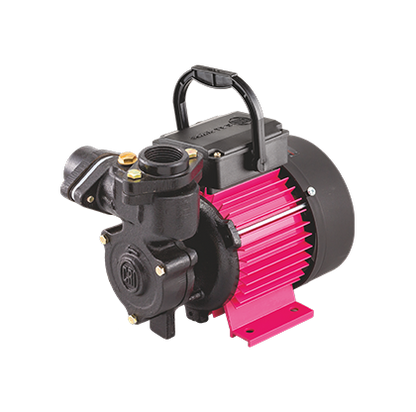

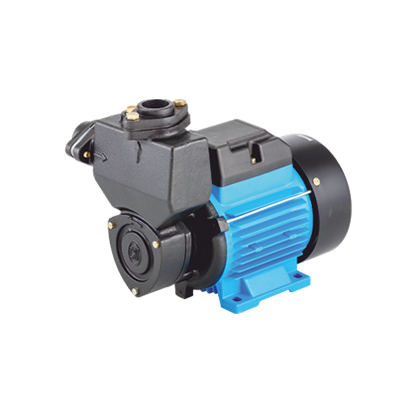

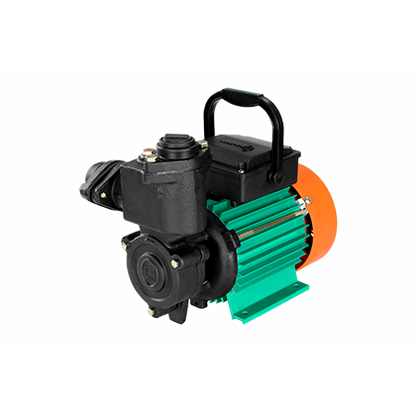

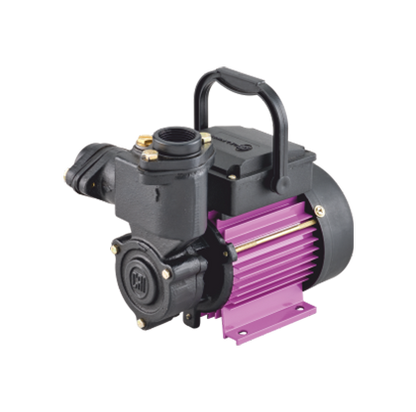

CRI MINI PUMPS
CRI MINI PUMPS
Engineered for Domestic Use & Compact Applications
C.R.I.’s Mini Pumps are designed for durability, performance, and consistent water delivery. Ideal for small-scale water boosting, this self-priming pump operates effectively even in wide voltage fluctuations—making it a reliable choice for Indian households and urban setups.
📄 View Brochure⚙️ Key Features
- Built-in Thermal Overload Protector (TOP)
- Wide voltage operation for unpredictable power conditions
- Compact and sturdy design with powder-coated stator body
- Double-sealed ball bearings for extended life
- Self-priming design with air-water mix suction
- Optional extension shaft version available
✅ Applications
Domestic water supply
Small garden irrigation
Pressure boosting systems
Civil and urban utility applications
📐 Specifications
| Parameter | Details |
|---|---|
| Power Range | 0.18kW – 1.1kW (0.25 HP – 1.5 HP) |
| Version | 1Ph: 220–240V, 50Hz 3Ph: 380–415V, 50Hz |
| Max Head | Up to 100 metres |
| Max Flow Rate | Up to 3.8 m³/hr (3800 lph) |
🧱 Material of Construction
| Part Name | Material |
|---|---|
| Motor Body | Aluminium Extruded |
| Motor Shaft | SS 410 |
| Impeller | High Tensile Brass |
| Volute Casing | Forged SS / Brass |
