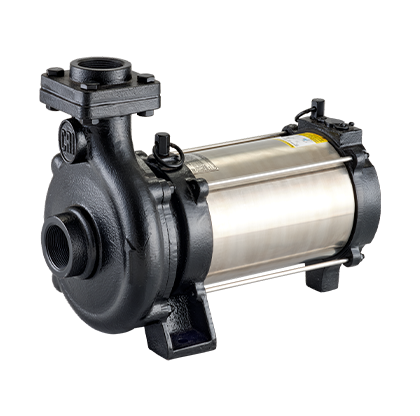

CRI Horizontal Openwell Submersible Pumpsets Plano Series
CRI Horizontal Openwell Submersible Pumpsets Plano Series
High-efficiency submersible solution ideal for open wells and tanks.
This pump rests fully submerged at the bottom of wells or tanks, eliminating suction and priming issues. Designed with robust stainless steel motor housing, sand guards, and pressure-equalizing diaphragms for durability and protection. Ideal for residential and agricultural use.
Applications
Domestic water supply
Garden watering
Multi-storey buildings
Rural water supply
Irrigation
Key Features
- High operating efficiency with hydraulic impeller design
- Continuous duty (S1), rigid & durable construction
- Stainless steel motor body
- Sealed motor with oil seals, O-rings & sand guard
- Pressure-equalizing diaphragm for longer life
Specifications
| Parameter | Value |
|---|---|
| Power Range | 0.37 kW – 1.5 kW (0.5 – 2 HP) |
| Speed | 2880 RPM |
| Voltage | Single Phase, 220–240V, 50Hz AC |
| Max Total Head | Up to 45 metres |
| Max Flow Rate | Up to 8.5 lps (30.6 m³/h) |
| Duty Type | S1 – Continuous |
Material of Construction
| Component | Material |
|---|---|
| Shaft | SS 410 / SS 431 |
| Pump Shaft | SS 304 / SS 410 / SS 431 |
| Motor Base | Cast Iron |
| Impeller | Noryl / Delrin |
| Diffuser Chamber | SS 304 / Cast Iron / Noryl |
