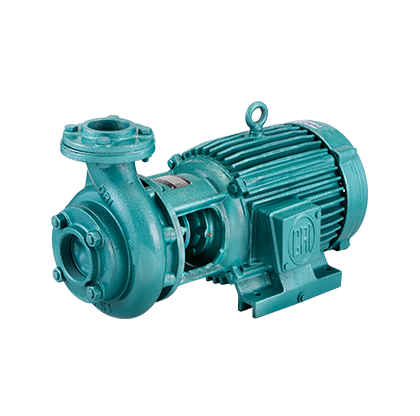

CRI CENTRIFUGAL MONOBLOCK PUMPS JUMBO SERIES
CRI CENTRIFUGAL MONOBLOCK PUMPS JUMBO SERIES
High-Volume Irrigation | Industrial-Grade Durability | Efficient Water Transfer
The C.R.I. Centrifugal Pump (JUMBO Series) is a high-performance solution built for agricultural, industrial, and continuous-duty irrigation needs. Using a dynamically balanced impeller powered by a robust AC induction motor, this pump delivers efficient, high-volume water flow with minimal energy loss and reduced temperature rise.
It’s ideal for systems that require non-stop operation, especially in sprinkler, drip, and flood irrigation.
View BrochureKey Features
- Dynamically balanced rotating parts reduce vibration and enhance life
- 3D heat transfer technology ensures low temperature rise
- Wide voltage compatibility ideal for rural/industrial power conditions
- High operating efficiency means lower power bills
- Rugged cast iron construction enhances life cycle
- Strong suction lift for reliable water intake
Applications
Agriculture & Irrigation
Sprinkler and Drip Systems
Industrial Liquid Transfer
Domestic Water Supply
Farm & Garden Use
Technical Specifications
| Parameter | Details |
|---|---|
| Power Range | 2.2 kW – 15 kW (3 HP – 20 HP) |
| Voltage Range | 3 Phase, 350 / 380 / 415V, 50Hz, AC Supply |
| Max Total Head | Up to 94 metres |
| Max Flow Rate | 33 lps (118.8 m³/hr) |
Material of Construction
| Component | Material |
|---|---|
| Pump Casing | Cast Iron |
| Impeller | Cast Iron / Lead Bronze |
| Motor Frame | Cast Iron |
| Bracket | Cast Iron |
| Shaft | Stainless Steel 410 / Mild Steel |
