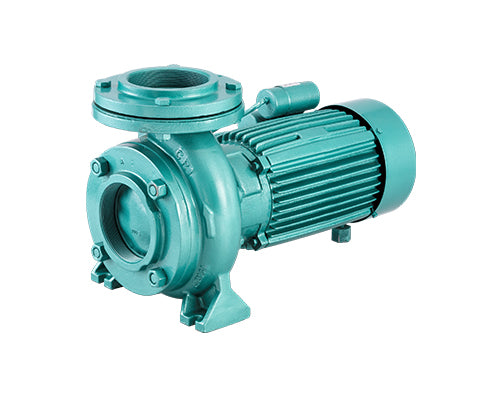

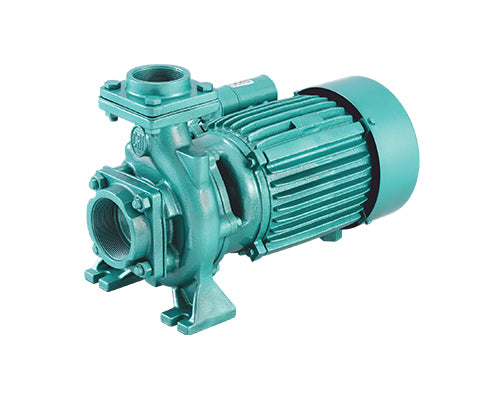

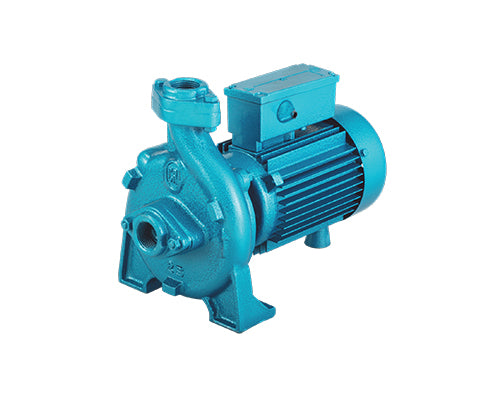

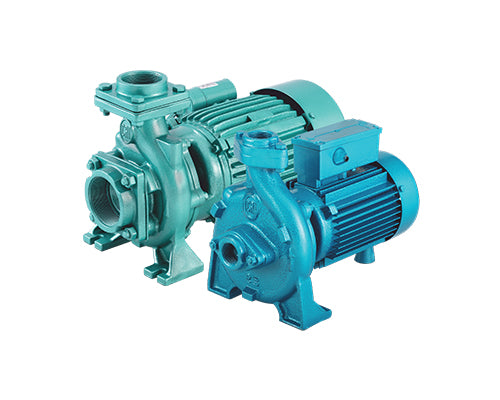

CRI CENTRIFUGAL MONOBLOCK PUMPS ACM / VIRAT SERIES
CRI CENTRIFUGAL MONOBLOCK PUMPS ACM / VIRAT SERIES
Efficient, Compact, and Maintenance-Friendly Solution for Domestic and Industrial Needs
The ACM Series Monoblock Pump is a highly efficient, space-saving unit designed with a coupled motor and pump on a single shaft—ensuring zero transmission loss and smooth power transfer. Built with durable materials and optimized hydraulics, it offers high performance, energy savings, and ease of servicing.
View BrochureKey Features
- Energy Efficient: High hydraulic efficiency ensures reduced power consumption
- Wide Voltage Operation: Specially engineered for Indian grid fluctuations
- Thermal Overload Protection: Inbuilt in all 1Ph models up to 1.5 HP
- Back Pull-Out Design: Enables easy servicing without disturbing pipeline
- Dynamically Balanced Rotating Parts: Ensures longer life and reduced vibration
- Good Suction Lift Characteristics: Ideal for varied water sources
Applications
Domestic water supply
Irrigation & farming
Industrial & civil use
Gardens and landscaping
Specifications
| Specification | Details |
|---|---|
| Power Range | 0.37 kW – 2.2 kW (0.5 HP – 3.0 HP) |
| Voltage Range | 1Ph: 220–240V, 50Hz 3Ph: 380–415V, 50Hz |
| Max Total Head | Up to 41 metres |
| Max Flow Rate | Up to 18 lps (68.8 m³/h) |
Material of Construction
| Part Name | Material |
|---|---|
| Impeller | Cast Iron / SS 304 / Noryl |
| Pump Casing | Cast Iron |
| Motor Frame | Cast Iron / Aluminium |
| Shaft | SS 410 |
| Bracket | Cast Iron |
