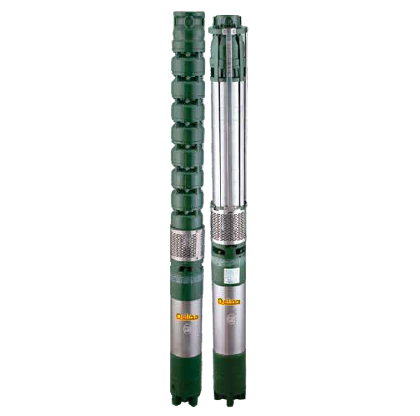

CRI 150MM SUBMERSIBLE, 150MM STAINLESS STEEL DELMA SERIES
CRI 150MM SUBMERSIBLE, 150MM STAINLESS STEEL DELMA SERIES
Heavy-Duty, High-Efficiency Deep Well Solution
Engineered for high-volume water lifting in demanding applications, this 150 mm borewell submersible pump is powered by a water-filled, rewindable motor built for continuous operation. Featuring T-bolt motor design for robust construction, advanced impeller-diffuser systems for maximum hydraulic efficiency, and wide voltage compatibility—this pump is ideal for deep irrigation and high-pressure water supply needs.
View BrochureKey Features
- Rewindable water-filled motor with SS stator shell
- High-efficiency radial and mixed flow hydraulic design
- Built-in check valve to reduce water hammering
- T-Bolt motor design for enhanced rigidity
- Thrust bearing designed to handle high axial loads
- Friction-free fluid movement due to smooth surface finish
- SS 304 stage casings and impellers for radial flow
- SS 410 or bronze impellers in mixed flow variants
- Horizontal configuration available for versatile installation
Applications
Agriculture & Irrigation
Domestic & Rural Water Supply
Civil & Industrial Water Systems
Fire Fighting
Pressure Boosting
Gardening
Specifications
| Parameter | Details |
|---|---|
| Power Range | 1.5 kW – 26 kW (2 HP – 35 HP) |
| Voltage Range | 1Ph: 200–240V AC 3Ph: 380–415V AC, 50Hz |
| Max Head | Up to 516 metres |
| Max Flow Rate | Up to 22 lps (79.2 m³/hr) |
Material of Construction
| Component | Material |
|---|---|
| Casing | Cast Iron |
| Impeller | SS 304 / SS 410 / Bronze |
| Pump Shaft | SS 410 / SS 431 |
| Upper & Lower Casing | Cast Iron |
| Shaft Core | SS 410 with EN-9 & SS 304 Coating |
