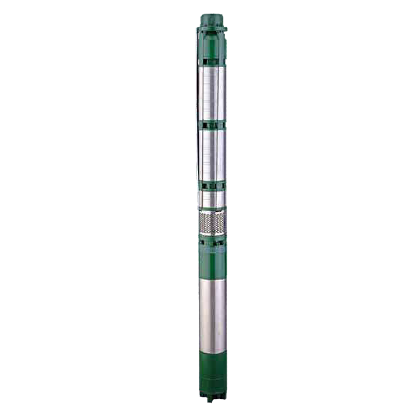

CRI 150MM SUBMERSIBLE, 150MM STAINLESS STEEL BINDA 6D SERIES

Designed for Extreme Depths with Double Efficiency

The BINDA 6D+ Series is C.R.I.'s advanced 150 mm borewell submersible pump set, specially crafted for ultra-deep groundwater applications. It delivers exceptional water-lifting capacity from deeper levels with fewer stages—ensuring reduced wear, lower operational cost, and a longer service life. Powered by a water-filled, rewindable submersible motor with T-Bolt construction for enhanced rigidity, this pump offers consistent performance and superior energy efficiency in both agricultural and industrial setups.

Applications

Deep Borewell Irrigation

Agricultural (Sprinkler / Drip)

Domestic Water Supply

Civil & Industrial Water Supply

Mining Operations

Fire Fighting

Garden Irrigation

 Key Features

• Double water lifting capacity with reduced number of stages
• SS 410 impeller and SS 304 stage casing for superior corrosion resistance
• Built-in check valve reduces water hammering risk
• Thrust bearings and Carbon-Teflon pads designed to handle high axial loads
• Motor designed for better heat dissipation via increased housing area
• Low watt-loss stator ensures energy efficiency and long service life
• Rigid motor construction using T-Bolt design

 Specifications

Material of Construction
