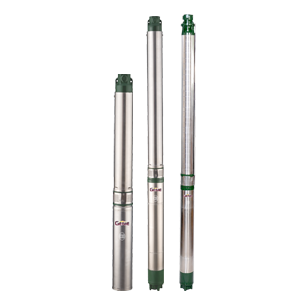

CRI 100MM BOREWELL SUBMERSIBLE PUMPS GENIE SERIES
CRI 100MM BOREWELL SUBMERSIBLE PUMPS GENIE SERIES
High-efficiency submersible pump engineered for deep well water extraction. Designed for durability, hygiene, and optimal hydraulic performance.
Key Features
- Fully submersible motor with stainless steel (SS 304) outer shell for corrosion resistance
- High hydraulic efficiency from precision-engineered impeller and diffuser
- Built-in check valve prevents backflow and protects against water hammer
- Designed to withstand high axial thrust using specially designed thrust bearings
- Water-lubricated, wear-resistant bearings for long service life
- Threaded motor construction ensures rigid assembly and easy servicing
Applications
Domestic & Municipal
Rural Supply
Sprinkler System
Pressure Boosting
Fire Fighting
Specifications
| Parameter | Details |
|---|---|
| Power Range | 0.37 kW – 5.5 kW (0.5 HP – 7.5 HP) |
| Voltage Range | Single Phase: 220V AC Three Phase: 380–400V AC, 50Hz |
| Max. Total Head | 568 Metres |
| Max. Flow Rate | 7 LPS (25.2 m³/h) |
| Pump Diameter | 100 mm |
| Motor Type | Water-filled submersible with SS 304 shell |
Material of Construction
| Component | Material |
|---|---|
| Shaft | SS 410 / SS 431 |
| Pump Shaft | SS 304 / SS 410 / SS 431 |
| Motor Base | Cast Iron |
| Impeller | Noryl / Delrin |
| Diffuser Chamber | SS 304 / Cast Iron / Noryl |
