CGSV® - AGRI Borewell (V4, V5, V6, V7 & V8)

High-Efficiency Mixed & Radial Flow Pumps for Deep Borewell Applications

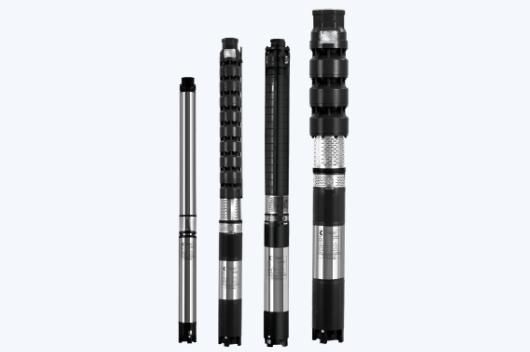

The CGSV® Agricultural Borewell Submersible Pump range (V4 to V8 series) is engineered to deliver exceptional hydraulic performance across demanding agricultural and industrial environments. Designed with mixed and radial flow configurations, these pumps ensure efficient water lifting even at greater depths, offering a reliable solution for large-scale irrigation and high-rise water delivery.

Key Features:

• ⚙️ Mixed & Radial Flow Design
  Optimized for high water discharge and maximum energy efficiency across varied borewell depths.

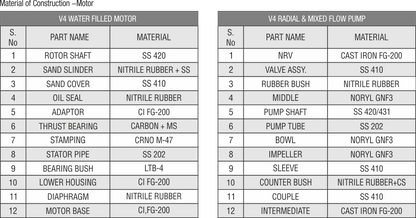

• 🛡️ CED-Coated Cast Iron Components (V4 Models)
  Offers robust corrosion protection, extending product life in challenging underground environments.
• 🔌 Wide Voltage Compatibility
  • 3-Phase: 350V – 440V, 50Hz
  • 1-Phase: 160V – 240V, 50Hz (select models available)
• ⚡ High-Performance Copper Rotor
  Ensures better electrical efficiency and longer operating life.
• ✅ Integrated Non-Return Valve (NRV)
  Prevents backflow and safeguards the motor against reverse pressure.
• 📦 Secure Packaging
  Specially designed tubular paper core packing for enhanced safety during transport.

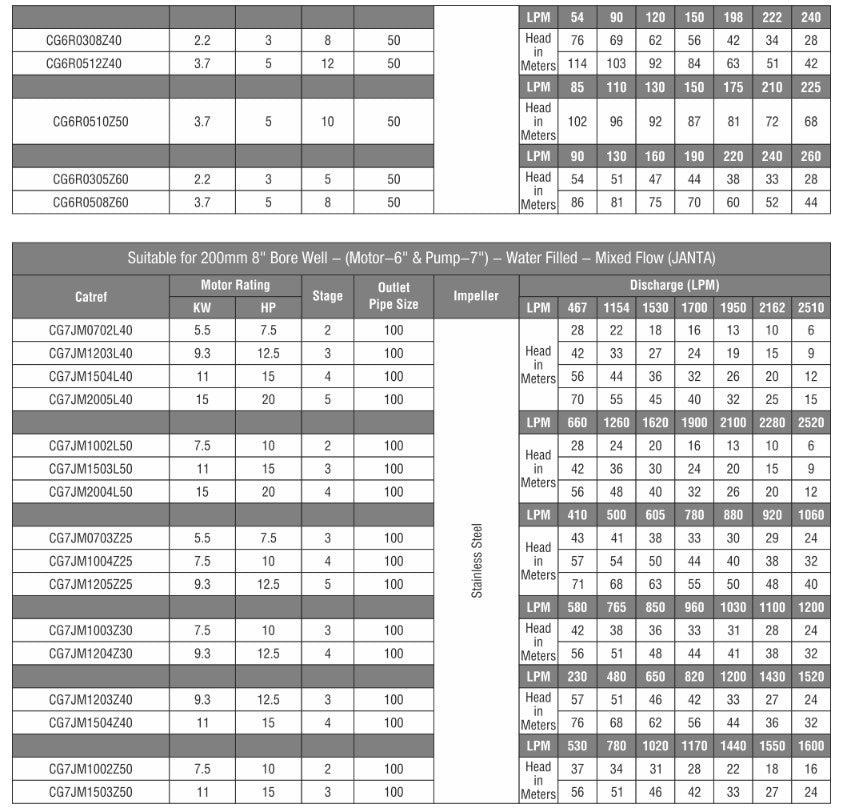

• 🛠️ “JANTA” Model Options
  Available in 6-inch motor with 7-inch pump combinations for specific high-output needs.
• ⚡ Power Range
  From 3.0 HP to 40 HP (3-Phase), with select models available in 1-Phase variants.

Applications:

• 🌾 Farm Irrigation – Reliable water supply for crops
• 💦 Sprinkler Irrigation Systems
• 🏗️ Construction Sites – For dust suppression and concrete mixing
• 🏢 High-Rise Buildings – Vertical water delivery
• 🏭 Industrial Water Supply – For process and utility usage
